HEAD FRAME

A LIGHTWEIGHT HEADFRAME SOLUTION TO SIMPLIFY INSTALLATION, OPERATION AND MAINTENANCE.

Our focus was to create a standardised product that is inherently versatile to maximise usability across a wider range of sites, supporting various carrier requirements.

HUB's suite of standardised headframes delivers exceptional cost efficiency, streamlined operations, and robust engineering, tailored for carrier's needs. Our design approach and strategic partnership ensure that carriers benefit from reduced supply and installation costs, faster deployment, and enhanced reliability, making HUB the ideal supplier for headframes.

OVERVIEW

ABOUT

DESIGN

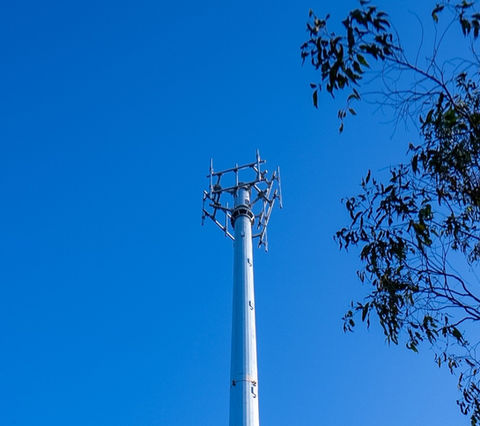

HUB’s head frame design is robust and optimised for varying site conditions and carrier antenna arrangements, supporting most single and multi-carrier 4G and 5G RF solutions.

It is compatible with an estimated 90% of carrier three-sector installations. The structure simplifies the SAED process, reducing design and supply lead times.

Its lighter design compared to industry equivalents and modularity make it ideal for single-sector installations.

These products are certified and manufactured by HUB, ensuring a high level of quality and accountability.

ENQUIRE

Images are illustrative purposes only.

DOWNLOADS

BROCHURE

CAPABILITY

PRODUCT CONFIGURATIONS

We understand that standardisation creates significant product efficiencies, leading to notable cost and operational benefits. This results in an overall enhanced carrier deployment speed. Our primary intention was to maximise the usability of our headframes, supporting installations for more carriers on a wider variety of structures. Our product range reflects our commitment to this:

4m: Best suited for multi-carrier joint venture installations; the headframe supports 2 passive antennas and up to 5 active antennas per sector, along with all associated antennae ancillaries.

3m: Suited for single or multi-carrier installations, supporting 2 passive antennas and up to 3 active antennas per sector.
2.5m: Supports a single carrier, with one passive antenna and up to 3 active antennas along with associated ancillaries per sector.
T + 1m solution: Centre column and adaptor to support headframe installations installed above the pole tip.
